Contents

clc; clear all; close all;

Initial Data

theta = pi/24; % known parameter
tfine = 0:theta:pi*2;
Gk = [cos(theta),sin(theta);-sin(theta),cos(theta)];
Hk = [1,1];
x0 = [.25,.75]'; % known initial value
N = length(tfine)-1; qf = zeros(2,N+1);
qf(:,1) = x0;
for k=1:N, qf(:,k+1) = Gk*qf(:,k); end
qxf = qf(1,:); qyf = qf(2,:);
sigmaH = .1;
sigmaG = .05;
noise = randn(size(qf)); % white noise
zxy = qf + sigmaH*noise; % measurements polluted by random noise
z = Hk*zxy;

[ nVar, ~ ]=size(Gk);
% Pk can be initialized as 0 as x0 is the "real value" not an approximation
[xKal_filter PKal_filter]  = kalman (x0, zeros(nVar), Gk, Hk, z(:,:), sigmaG.^2*eye(nVar), sigmaH.^2, zeros(size(x0)));

Initial Data vs Ground Truth

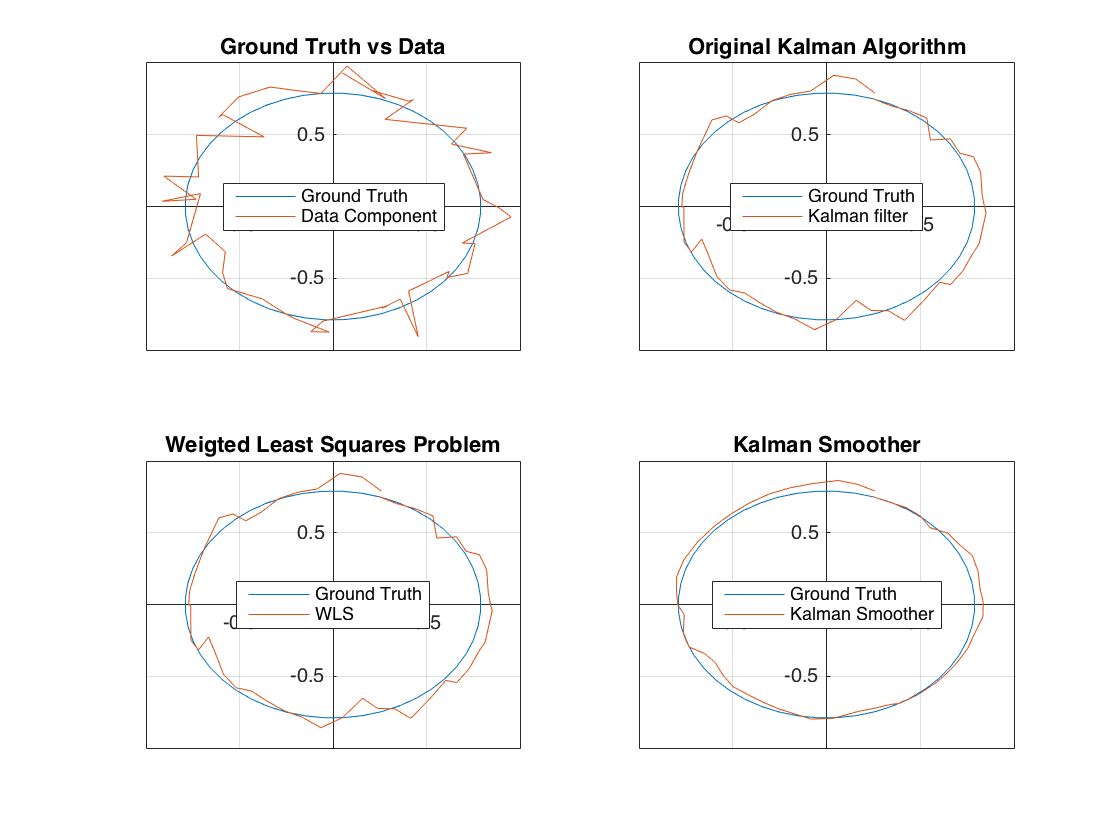

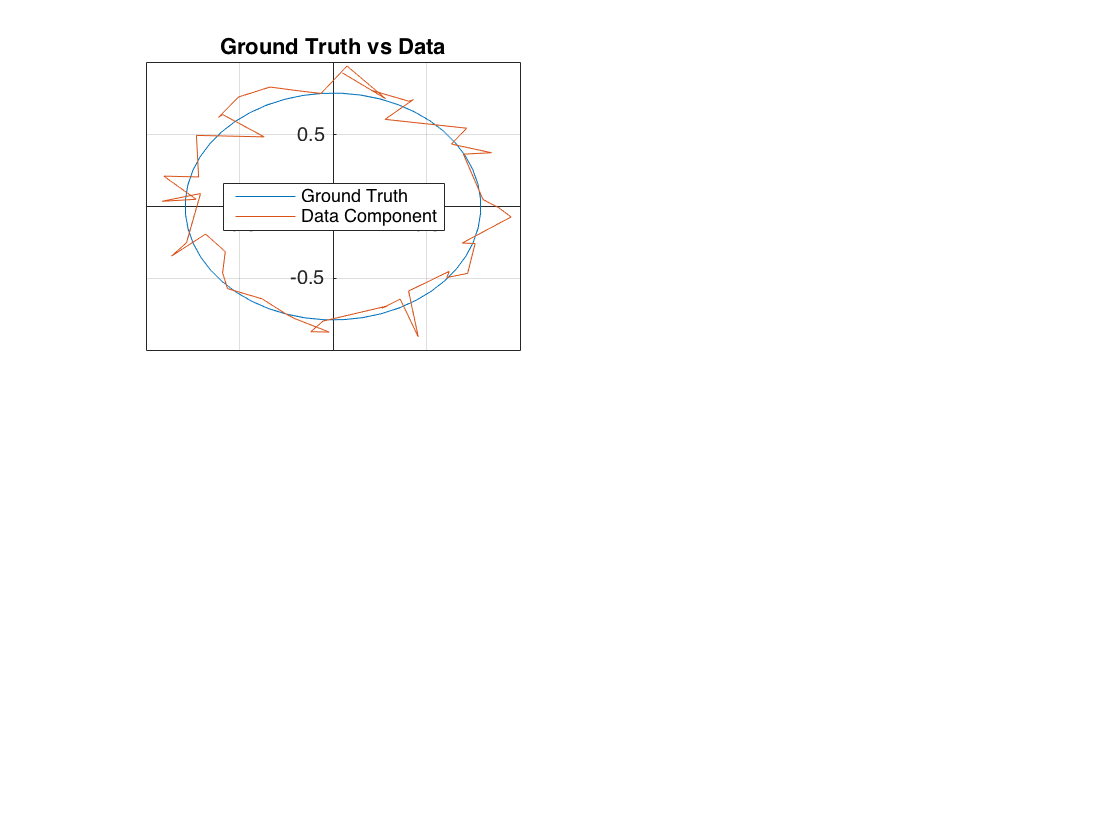

subplot(2,2,1);
plot(qf(1,:),qf(2,:),zxy(1,:),zxy(2,:)); grid on;
legend('Ground Truth', 'Data Component')
legend('Location','best')
ax = gca;
ax.XAxisLocation = 'origin';
ax.YAxisLocation = 'origin';
title('Ground Truth vs Data')

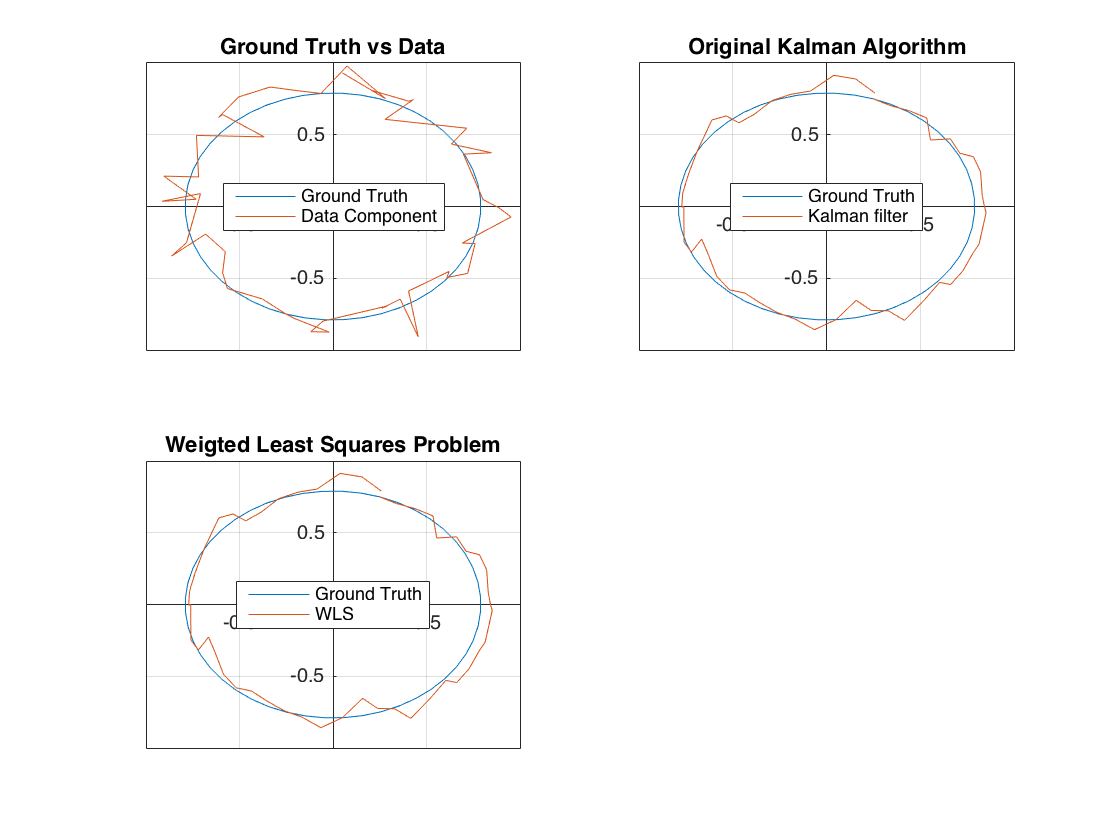

Kalman Filter: 2 different implementations

%first implementation
subplot(2,2,2);
plot(qf(1,:),qf(2,:),xKal_filter(1,:),xKal_filter(2,:)); grid on;
legend('Ground Truth', 'Kalman filter')
legend('Location','best')
ax = gca;
ax.XAxisLocation = 'origin';
ax.YAxisLocation = 'origin';
title('Original Kalman Algorithm')

[xWLS PWLS]  = kalman (x0, zeros(nVar), Gk, Hk, z(:,:), sigmaG.^2*eye(nVar), sigmaH.^2, zeros(size(x0)),'WLS');

%second implementation
subplot(2,2,3);
plot(qf(1,:),qf(2,:),xWLS(1,:),xWLS(2,:)); grid on;
legend('Ground Truth', 'WLS')
legend('Location','best')
ax = gca;
ax.XAxisLocation = 'origin';
ax.YAxisLocation = 'origin';
title('Weigted Least Squares Problem')

[xKS PKS]  = kalman (x0, zeros(nVar), Gk, Hk, z(:,:), sigmaG.^2*eye(nVar), sigmaH.^2, zeros(size(x0)),'KS');

Kalmann Smoothing

subplot(2,2,4);
plot(qf(1,:),qf(2,:),[x0(1) xKS(1,:)],[x0(2) xKS(2,:)]); grid on;
legend('Ground Truth', 'Kalman Smoother')
legend('Location','best')
ax = gca;
ax.XAxisLocation = 'origin';
ax.YAxisLocation = 'origin';
title('Kalman Smoother')

deltaXfilterLast=norm(xWLS(:,end) - xKal_filter(:,end))
deltaPfilterLast=norm(PWLS(:,:,end) - PKal_filter(:,:,end))
deltaXfilter=norm(xWLS(:,:) - xKal_filter(:,:))
for i=1:N+2
    deltaPsfilter=norm(PWLS(:,:,i) - PKal_filter(:,:,i))/(N+2);
end
deltaPsfilter

deltaXFSLast=norm(xKS(:,end) - xKal_filter(:,end))
deltaPFSLast=norm(PKS(:,:,end) - PKal_filter(:,:,end))

deltaXfilterLast =

     1.413083212815398e-15


deltaPfilterLast =

     4.381485588785463e-17


deltaXfilter =

     1.816062500790920e-14


deltaPsfilter =

     8.762971177570926e-19


deltaXFSLast =

     1.387778780781446e-15


deltaPFSLast =

   0.021693634950311
